How to complete a windshield survey for community health nursing becomes easier when you treat it as a structured observation rather than an informal drive through a neighbourhood. The task is to record visible community conditions consistently, separate observation from assumption and explain how selected features may influence health.
This guide covers planning, observation categories, field notes, analysis and academic reporting. It deliberately focuses on the windshield survey itself. It does not attempt to write a complete community health assessment, diagnosis or intervention plan.
Quick answer: A windshield survey for community health nursing uses a planned route and consistent checklist to record visible neighbourhood conditions. Students then distinguish direct observation from interpretation, verify important impressions with credible data and report clear limitations.
Key Takeaways
- Define a clear geographic boundary, route, time and observation tool before starting.
- Record visible evidence instead of guessing residents’ income, culture, diagnoses or behaviour.
- Observe both community strengths and possible barriers.
- Verify important impressions with credible secondary data and community perspectives.
- A windshield survey generates preliminary evidence; it is not a complete needs assessment.
What Is a Windshield Survey in Community Health Nursing?
A windshield survey is a systematic observation of a defined community. Traditionally, an observer travels through the area in a vehicle. However, a walking survey, public-transport route or approved virtual observation may be appropriate when the assignment permits it and safety, access and geography are considered.
The observer looks for visible features that may shape health, such as housing, roads, transport, food outlets, green space, schools, health services and environmental conditions. The survey can identify possible assets, barriers and questions for further investigation.
The word “windshield” should not make the method casual. A strong survey uses a predetermined route, consistent categories and contemporaneous notes. For example, the US Centers for Disease Control and Prevention’s Built Environment Assessment Tool uses defined street segments and observable features to make environmental assessment more systematic.
What the survey can and cannot establish
| The survey can document | The survey cannot establish by itself |
|---|---|
| Presence and condition of visible facilities | Whether every resident can access or afford them |
| Observable road, pavement and crossing features | Actual injury rates or residents’ experience of safety |
| Types of visible housing and land use | Household income, tenure or health status |
| Location of public transport stops | Reliability, cost or accessibility across all times |
| Visible community organisations and gathering places | How inclusive, trusted or well used they are |
Therefore, write “a bus stop was observed on the main road,” not “residents have good transport access.” The second statement requires information about routes, frequency, cost, disability access and residents’ experiences.
Windshield Survey Versus Community Health Assessment
A windshield survey is one source of preliminary observational evidence. A full community health assessment is broader. It may integrate population statistics, health-service data, interviews, surveys, stakeholder perspectives and priority-setting processes.
This distinction protects the article from overlap with other assignment types. The site’s family health assessment nursing guide, for example, focuses on a family system rather than a geographic observation route. Likewise, the community health nursing dissertation topics page helps students formulate researchable topics rather than conduct neighbourhood observation.
Do not turn a windshield survey into a diagnosis of an entire community. Use it to identify patterns and questions that need verification.
How to Plan a Windshield Survey for Community Health Nursing
Read the assignment brief first
Identify the required location, framework, observation categories, format, word count, evidence requirements and confidentiality rules. Some courses provide a template. If so, follow it rather than replacing it with a generic checklist.
Clarify whether the task requires a physical visit, a walking route, a vehicle-based survey or remote mapping. Do not claim that a virtual survey involved direct observation. Street imagery can be outdated and may not show current accessibility, service opening or temporary environmental conditions.
Define the community boundary
Name the area precisely enough for the route to be reproducible, while following privacy requirements. Boundaries might use streets, census areas, wards, postcodes, villages or recognised neighbourhood limits.
A boundary that is too large produces superficial notes. A boundary that is too small may miss services used by residents. Explain why the selected area fits the purpose of the survey.
Design a representative route
Avoid observing only the main road or the most convenient street. Where feasible, include:
- residential areas with different housing types;
- main and minor roads;
- commercial and food-shopping areas;
- schools, healthcare facilities and community services;
- public transport points and pedestrian routes;
- parks, recreation sites and open space; and
- environmental features relevant to the locality.
Record the route, direction, date, start and finish time, weather and travel method. These details help the reader understand what could and could not be observed.
Choose observation times carefully
A single visit offers only a time-limited view. A weekday morning may not represent evenings or weekends. Traffic, service use, lighting, noise and public activity may change substantially.
If the assignment allows, observe at more than one time. Otherwise, state the limitation directly. Never infer that a park is unused merely because no one was present during one short visit.
Plan safety and ethical conduct
Follow university, placement and local safety instructions. Consider route familiarity, traffic, lone working, weather, communication, parking and whether another observer is required. Do not enter private property or unsafe areas to complete an academic task.
Avoid photographing identifiable people, vehicle registrations or private homes unless the brief, law and consent arrangements clearly permit it. Do not approach residents as research participants without appropriate approval. Observation in a public area does not remove responsibilities concerning dignity and privacy.
What to Observe During a Community Health Nursing Windshield Survey
Housing and land use
Record observable housing types, density, apparent condition, mixed residential-commercial use, vacant buildings and evidence of ongoing development. Describe what you can see. Avoid using building appearance as proof of poverty, neglect or family circumstances.
Transport, roads and walkability
Observe road condition, traffic volume, speed-control features, crossings, pavements, curb ramps, cycle infrastructure, bus stops and visible accessibility barriers. The CDC built-environment framework highlights transport, crossings, walkability, bikeability, food access and recreation as measurable environmental features.
Connect observations cautiously to possible health relevance. For instance, a missing pavement may create a potential barrier to walking, especially for people using mobility aids. It does not prove that residents are inactive.
Food environment
Record visible supermarkets, small shops, markets, restaurants, takeaway outlets, food banks and community gardens. Note apparent distance and distribution without claiming affordability or nutritional quality from shop names alone.
Food access is shaped by opening times, price, transport, cultural suitability and household resources. These require verification beyond observation.
Health and social services
Look for hospitals, clinics, pharmacies, dental services, mental-health support, social-care sites, emergency services and voluntary organisations. Record signs showing opening hours or accessibility only when clearly visible.
Presence does not equal access. Waiting times, eligibility, language support, trust and cost may still affect use.
Education and childcare
Note schools, colleges, libraries, childcare settings and adult-learning facilities. Observe safe routes, crossings and visible accessibility. Do not rate educational quality from the building exterior.
Recreation and community resources
Record parks, sports facilities, faith settings, community centres, cultural organisations and public meeting spaces. These may represent community assets. Describe maintenance, lighting or accessibility only when directly observable.
Environmental conditions
Observe visible waste, standing water, noise sources, industrial activity, heavy traffic, drainage, air-quality notices, shade, trees and heat-related features. Do not diagnose contamination or poor air quality without measurements or credible official data.
Safety and emergency preparedness
Look for pedestrian crossings, street lighting, fire and emergency services, visible hazards, damaged infrastructure and evacuation information where relevant. Avoid labelling a community “unsafe” because of appearance, security bars or a brief observation.
People and social activity
You may record general patterns of public activity without identifying individuals. For example, note that several people were waiting at a bus stop at the observation time. Do not infer ethnicity, immigration status, occupation, illness, housing status or criminal activity from appearance.
Windshield Survey Template for Community Health Nursing
The template below keeps the windshield survey for community health nursing centred on observable evidence. Adapt the categories to your brief rather than adding every possible community factor.
| Category | Objective observation | Possible health relevance | Verification needed |
|---|---|---|---|
| Transport | One bus stop with shelter; no visible timetable | Potential link to service access and mobility | Routes, frequency, cost and accessibility |
| Walkability | Pavement ends before the clinic entrance | Possible barrier for pedestrians and mobility-aid users | Resident experience and accessibility audit |
| Food | Two convenience shops; no large food store on route | May affect local food choice | Prices, product range and stores outside boundary |
| Community asset | Community centre advertising weekly groups | Possible source of social support | Participation, inclusion and residents’ views |
| Environment | Standing water beside two road sections after rain | Possible mobility or environmental-health concern | Duration, drainage records and local reports |
The “verification needed” column prevents observation from becoming an unsupported conclusion. It also creates a direct bridge to secondary data and community consultation.
How to Write Objective Field Notes
Separate description from interpretation
Use two columns or clearly labelled sections. First record what you observed. Then explain its possible relevance using cautious language.
| Weak note | Stronger observation |
|---|---|
| The neighbourhood is deprived. | Three boarded commercial units and two visibly damaged pavement sections were observed on the selected route. |
| Residents eat unhealthy food. | Four takeaway outlets and one small grocery shop were visible; product range and residents’ purchasing were not assessed. |
| The area is dangerous. | Two pedestrian crossings were present on the main road; no crossing was observed near the school entrance. |
| Older people are isolated. | No conclusion about social isolation can be drawn from the route observation alone. |
Record absence cautiously
“Not observed on the route” is safer than “does not exist.” A facility may sit outside the boundary, behind another building or on a street that was not visited. This wording preserves accuracy.
Use consistent categories
Complete the same checklist for every route segment. Consistency reduces the risk that an observer records attractive features in one area but hazards in another.
Compare notes when using multiple observers
If two students observe the route, complete initial notes independently and then compare them. Discuss disagreements using the recorded evidence. Agreement does not make an assumption true, but comparison can expose vague criteria.
How to Analyse Windshield Survey Findings
Group observations into patterns
Organise field notes under a small number of themes, such as access, mobility, environmental conditions, community assets and service distribution. Avoid writing a street-by-street travel diary.
Identify strengths as well as concerns
A deficit-only account can stigmatise communities and obscure resources that support health. Parks, local organisations, public transport, cultural networks and accessible services may be important assets.
Triangulate important observations
Compare observations with credible sources such as census data, local authority information, public-health profiles, transport timetables, environmental monitoring and service directories. WHO’s Urban HEART framework stresses using evidence across sectors and involving communities when assessing urban health inequities.
Secondary data can confirm, contradict or contextualise the route impression. For example, seeing one bus stop does not reveal service frequency. A timetable can help, while residents’ perspectives can show whether the service is usable.
Distinguish observation, evidence and inference
A strong analytical paragraph follows this sequence:
- Observation: state the visible feature.
- Evidence: connect it to credible health or environmental literature.
- Interpretation: explain a plausible implication.
- Qualification: state what cannot be concluded.
- Verification: identify the data or perspective needed next.
This structure demonstrates judgement without presenting an impression as fact.
Windshield Survey Example for a Nursing Assignment
Observation: “The pavement on the route ended approximately 150 metres before the community clinic, and no curb ramp was visible at the nearest crossing.”
Analysis: “This discontinuity may create an accessibility barrier for pedestrians using wheelchairs, walking aids or pushchairs. Built-environment assessment guidance identifies pavements, curb ramps and crossings as relevant features of walkability. However, one route observation cannot establish how residents travel to the clinic or whether an accessible entrance exists elsewhere. An accessibility audit, route mapping and consultation with service users would be needed before recommending changes.”
The paragraph remains useful because it links evidence to a visible finding while preserving uncertainty.
How to Write a Windshield Survey Nursing Assignment
A clear structure helps markers distinguish method, findings and analysis. It also prevents the paper from drifting into a generic community assessment.
Introduction
Define the windshield survey, identify the community boundary and state the purpose. Briefly explain the observation method and scope.
Method
Report the route, date, time, duration, weather, travel method, observation tool and safety or ethical precautions. Explain limitations, including restricted access and single-time observation.
Findings
Organise objective observations under selected categories. Tables can prevent repetition. Include both assets and possible barriers.
Analysis
Interpret only the most important patterns. Support claims with authoritative evidence, acknowledge alternative explanations and identify information needed for verification.
Nursing relevance
Explain how the observations may guide further community assessment, health promotion, advocacy, service coordination or referral. Do not imply that a student nurse can independently change transport, housing or environmental policy.
Limitations and conclusion
State the limits of the route, timing, observer perspective and secondary data. Summarise the most defensible findings without introducing new claims.
Common Windshield Survey Mistakes
- Writing a travel diary: organise evidence by health-relevant themes.
- Diagnosing by appearance: visible conditions do not reveal residents’ diagnoses or circumstances.
- Observing only deficits: include community strengths and protective resources.
- Using one visit as permanent truth: time and weather limit what was visible.
- Equating presence with access: a nearby service may remain unaffordable or inaccessible.
- Claiming causation: observation can suggest questions, not prove health effects.
- Inventing community views: observation is not consultation.
- Ignoring ethics and safety: protect privacy and follow institutional procedures.
- Expanding into a complete assessment: stay within the specified windshield-survey scope.
Final Windshield Survey Checklist
- The geographic boundary and route are clear.
- The date, time, weather and travel method are reported.
- The observation categories match the assignment brief.
- Visible evidence is separated from interpretation.
- “Not observed” is used instead of unsupported claims of absence.
- Strengths and possible barriers are both included.
- Important impressions are checked against credible data.
- Community perspectives are not invented.
- Health relevance is explained without claiming causation.
- Privacy, safety and access limitations are addressed.
- The conclusion stays within the windshield survey’s evidence.
Frequently Asked Questions
Can I complete a windshield survey on foot?
Yes, when the assignment permits it and the route is safe. State that you conducted a walking survey and explain how this affected coverage and detail.
Can Google Maps replace a physical windshield survey?
Only when your brief permits a virtual method. Street imagery may be outdated and cannot confirm current service use, accessibility or environmental conditions. Report the imagery date and limitations.
Should I include photographs?
Follow the assignment, university and local privacy rules. Avoid identifiable people, registrations and private details. A written observation table may be safer and more informative.
How long should the survey take?
There is no universal duration. Coverage should be sufficient for the defined boundary and route. Report the actual duration rather than implying comprehensive coverage.
Is a windshield survey qualitative research?
It produces structured observational information, often described qualitatively. A classroom exercise is not automatically formal research. Use the terminology required by your course and do not claim research approval or community participation that did not occur.
How do I choose the community’s priority health problem?
A windshield survey alone is insufficient. Combine observation with population data, service information and community perspectives before prioritising needs.
Editorial accuracy note: This guide treats a windshield survey as a bounded observational method. It does not equate visible conditions with residents’ health, income, culture, service use or priorities. Those claims require additional data and community perspectives.
Conclusion
A strong windshield survey for community health nursing is systematic, bounded and cautious. Plan a reproducible route, record visible evidence consistently and distinguish observation from inference. Then verify important patterns using credible data and community perspectives. This approach produces a useful foundation for further assessment without stereotyping residents or overstating what one observation can prove.
Need Help Structuring a Community Health Nursing Assignment?
Explore our evidence-based nursing assignment support if you need help interpreting a brief, organising observations or improving academic structure. You can learn about our nursing-focused approach, review how the support process works and read our student feedback and review policy. When ready, use the secure contact and order form. All assistance should follow your university’s academic-integrity requirements.
References
- Centers for Disease Control and Prevention (2024) Built Environment Assessment Tool and Manual. Available at: https://www.cdc.gov/physical-activity/php/built-environment-assessment/index.html (Accessed: 8 September 2026).
- Centers for Disease Control and Prevention (2024) Health Impact Assessment Resources. Available at: https://www.cdc.gov/environmental-health-tracking/php/communications-resources/hia-resources.html (Accessed: 8 September 2026).
- World Health Organization (2010) Urban Health Equity Assessment and Response Tool. Geneva: World Health Organization. Available at: https://www.who.int/publications/i/item/9789241500784 (Accessed: 8 September 2026).
- World Health Organization (2024) Urban Health Capacities: Assessment and Response Action Guide. Geneva: World Health Organization.

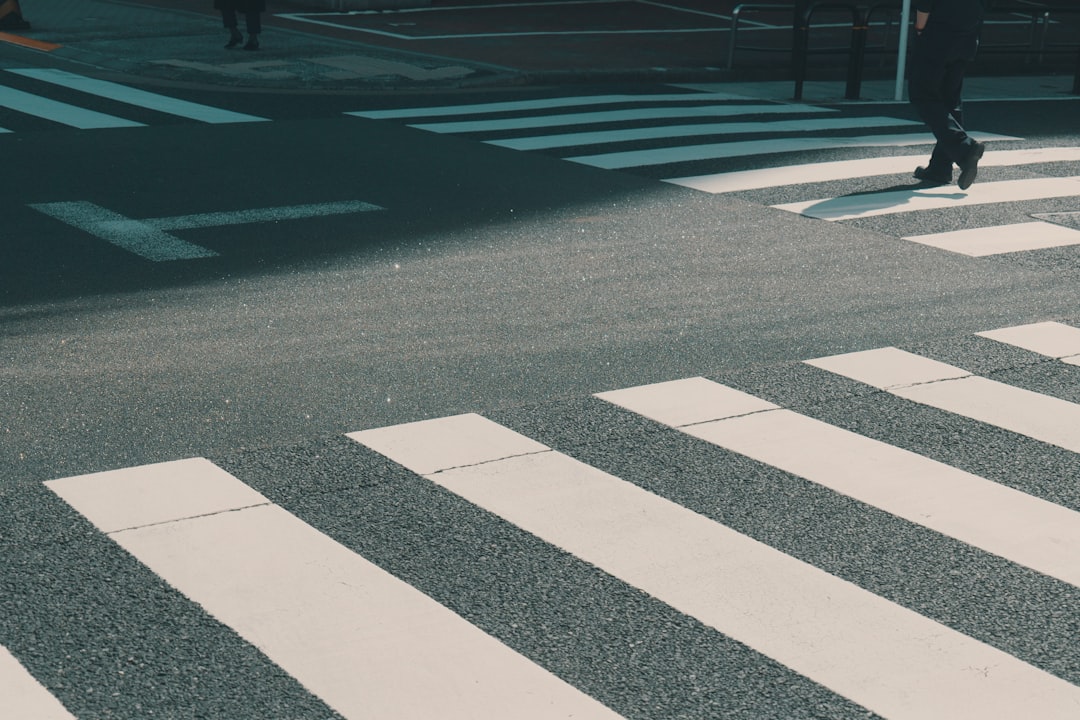

Featured image: Lee Milo via Unsplash. Inline image: Leo Okuyama via Unsplash.
